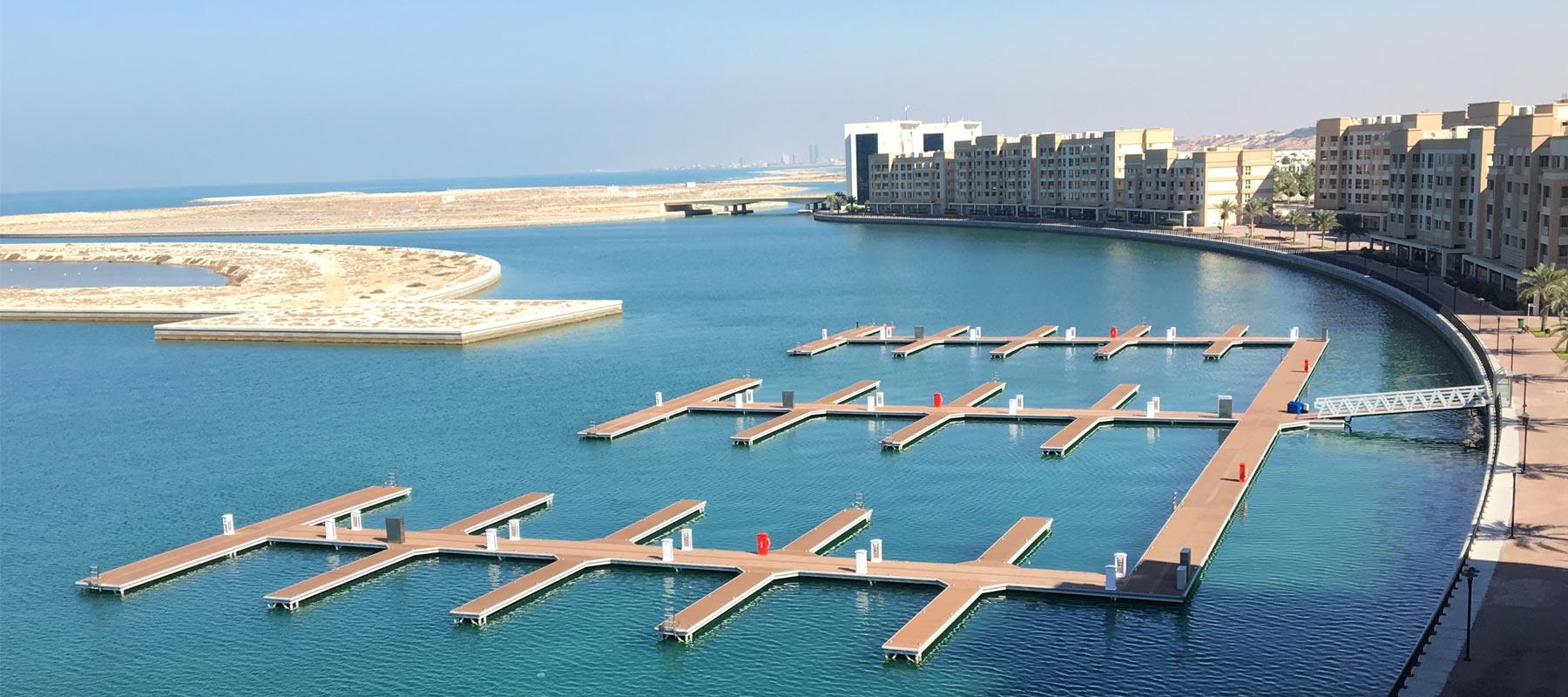

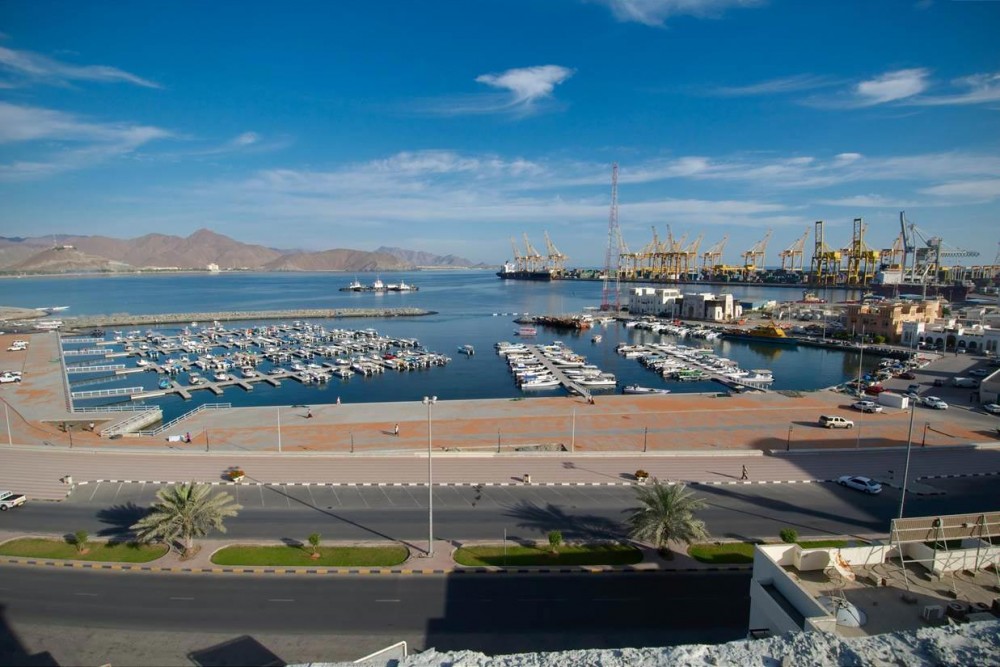

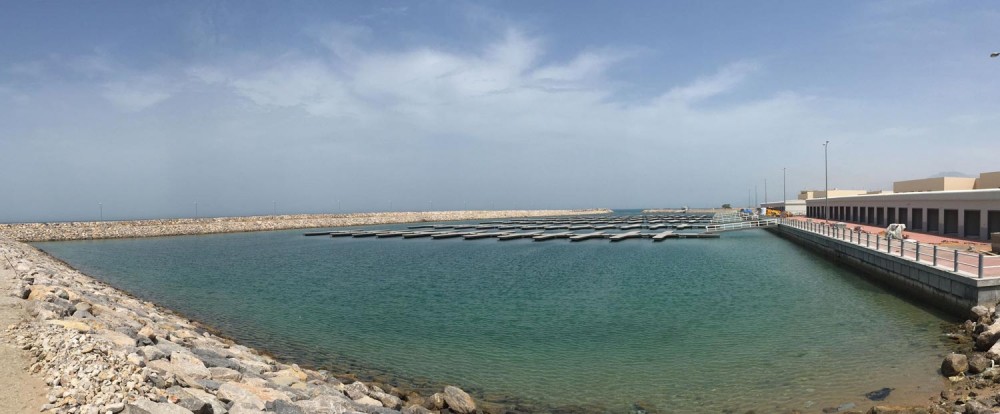

Marinas and Pontoons

Fiber Reinforced Concrete (FRC) and Fiber Reinforced Polymer (FRP) Pontoons

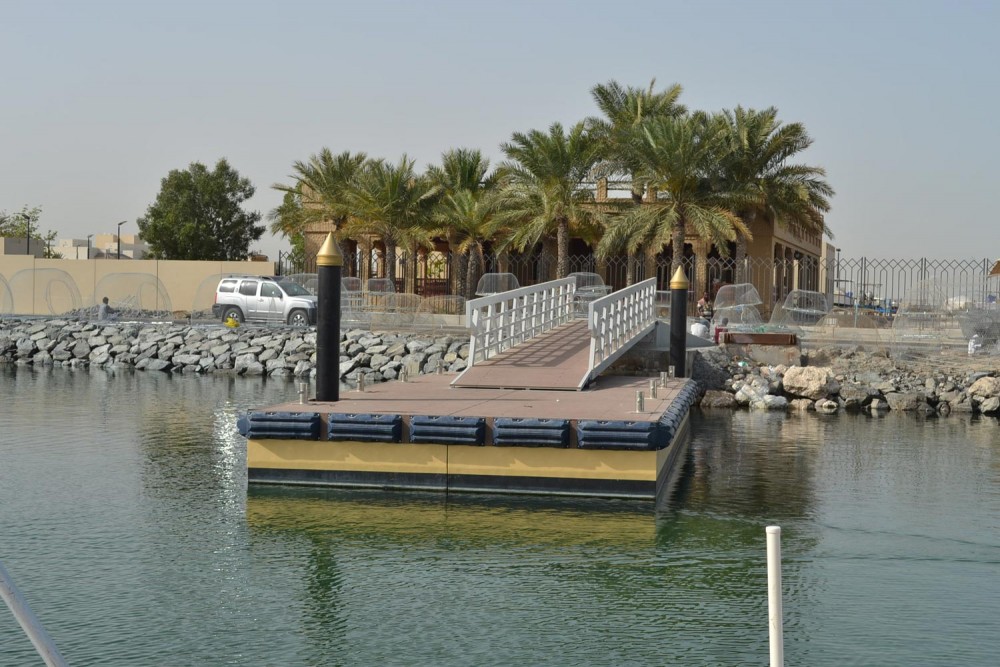

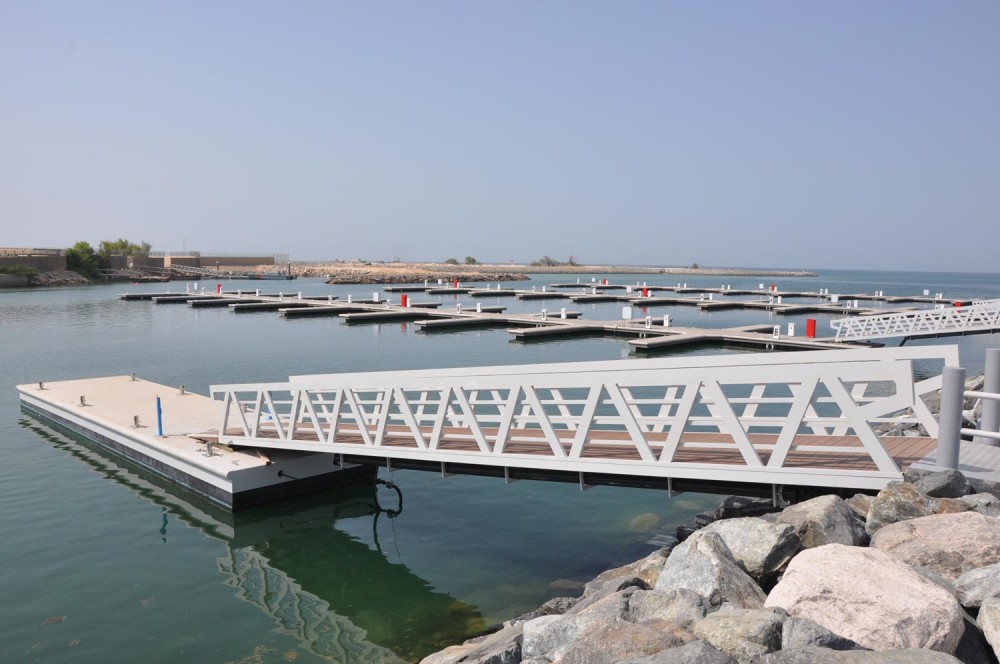

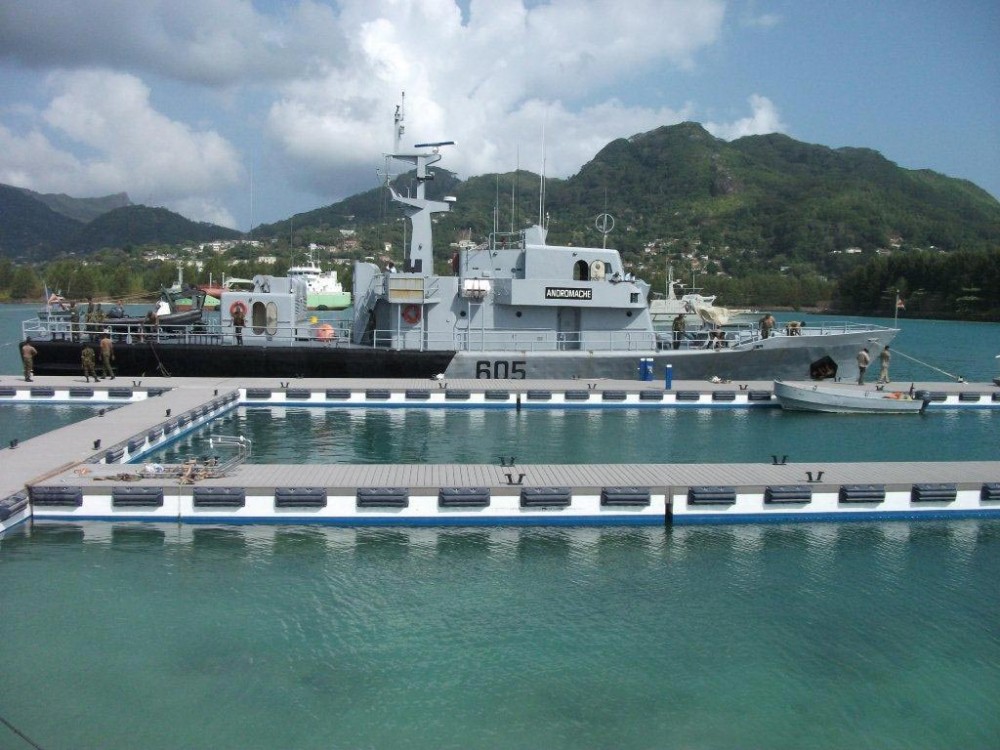

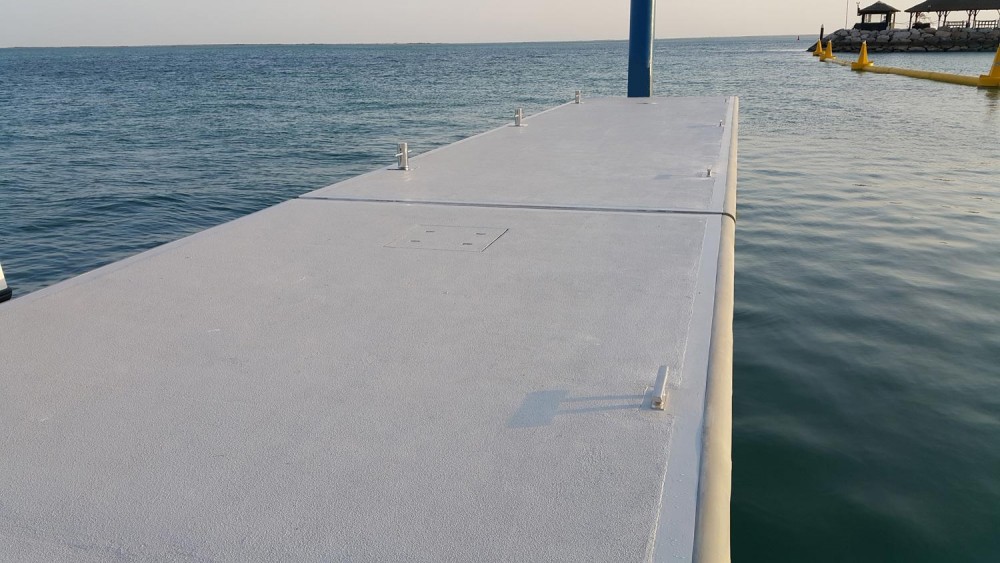

We offer three main pontoon systems, namely the monoblock heavy duty FRC system,  the monoblock heavy duty FRP system and the frame and float standard FRP system. All systems are modular and fully customisable in terms of dimensions, finishes and decking options. Services such as lighting, water, electricity, pump out, fire fighting, etc can be accommodated through utility ducts installed under the deck.

Majestic’s pontoon systems are ferrous-free, non-corrosive and hence have minimal maintenance requirements and superior service lives.

Decking

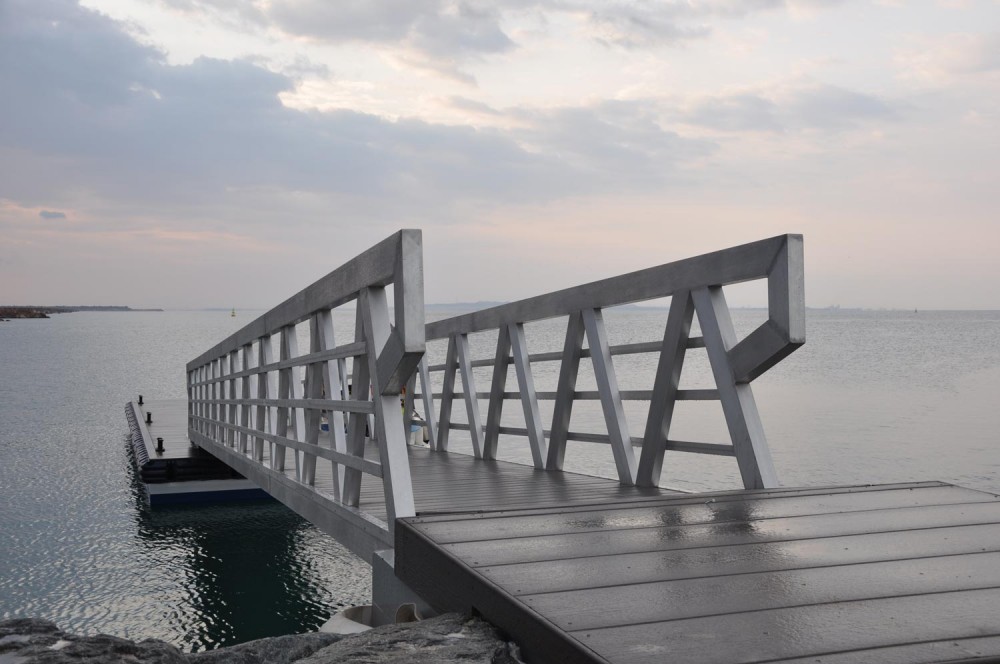

We recommend the use of Wood Plastic Composite (WPC) decking given the superior durability, low maintenance requirements and high aesthetic characteristics of the particular type of decking, however the following types of decking can also be installed on our pontoons: concrete, FRP or SS grating, natural wood and our VIP pontoon at the Louvre Museum in Abu Dhabi will even feature a unique anti-slip marble decking.

Anchoring Systems

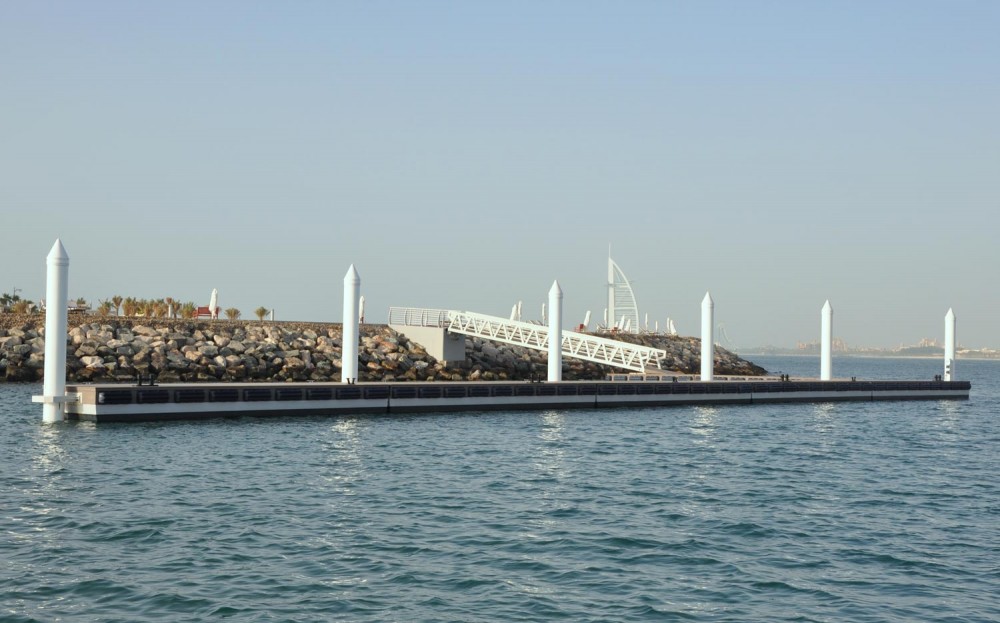

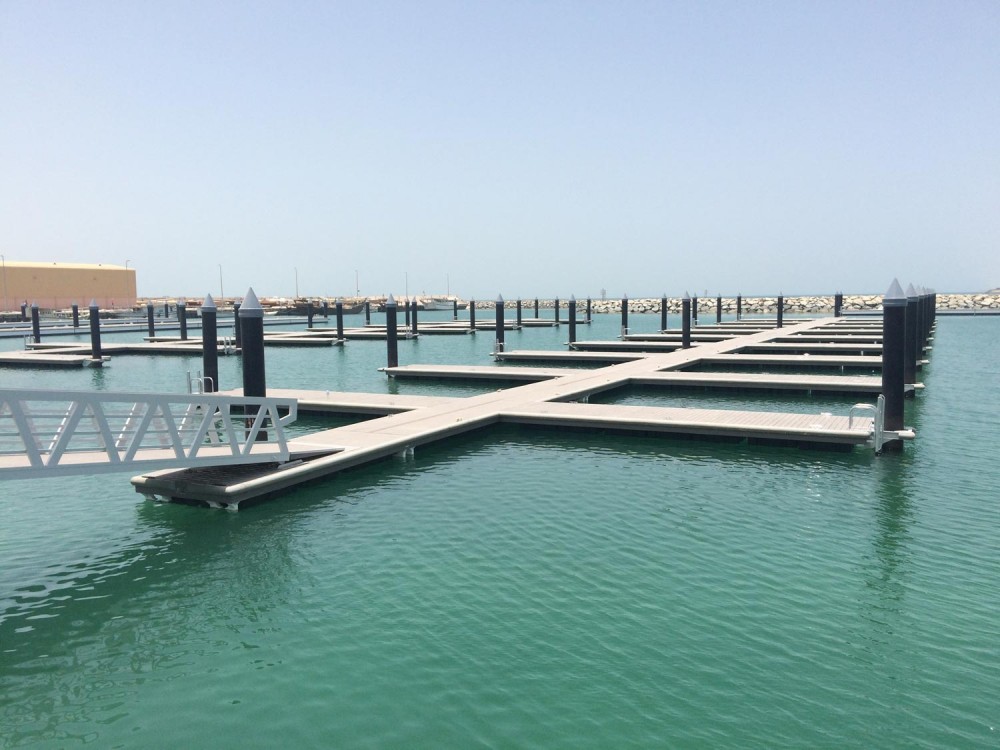

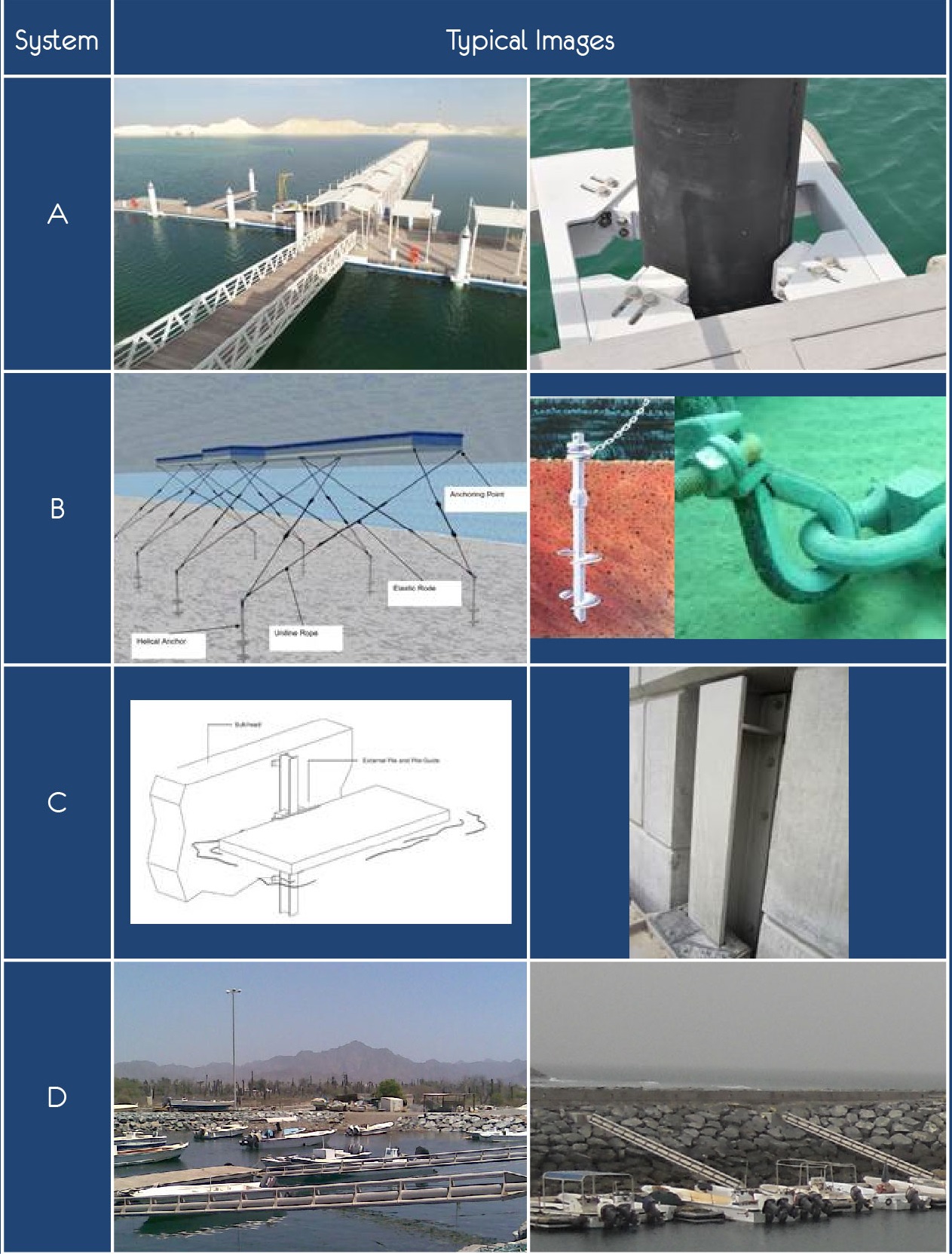

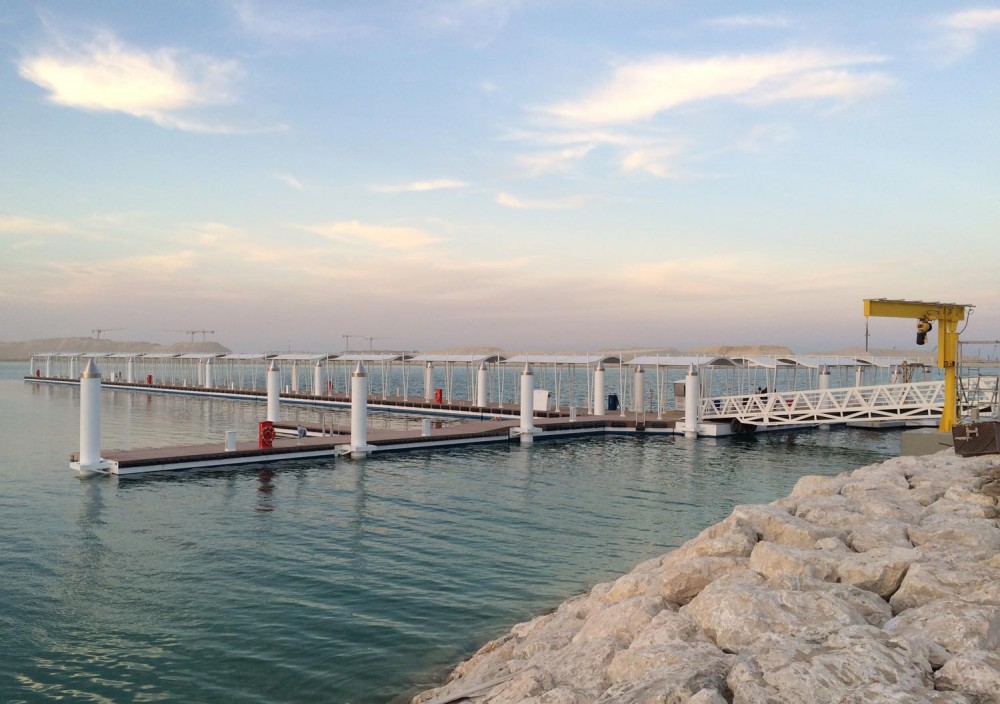

We use four main anchoring systems, namely; A: piles and pile guides, B: helical anchors (or concrete blocks in case of hard seabed strata) and elastic rodes, C: H-beams and guides, D: push arm.


Systems B and C are the most eco-friendly with minimum footprint and interference to the natural seabed and are thus aligned with our Environmental Corporate Commitments. Depending on the local wave climate, marina and design vessel specifications, we also use combinations, hybrids and variants of the aforementioned anchoring systems.
